GP12260
更新：2017-07-18 11:54:17 点击：
GP12260是一种通用电池，可在待机状态下使用5年或260次以上，循环放电100%次。
正如所有的CSB电池都可充电，高效、防泄漏、免维护。
公开价：1040 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 26 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| 重量(kg) | Approx. 8.45 kg. (18.62 lbs.) |
| 最大放电电流5秒(A) | 350 A (5sec.) |
| 内阻(mΩ) | Approx. 9.9 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25°C ± 3°C (77°F ± 5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 建议充电最大电流 | 7.8 A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | B1/B3/B3B-L terminal or Recessed type to accept M5 bolt |
| 电槽组材质 | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
|
|

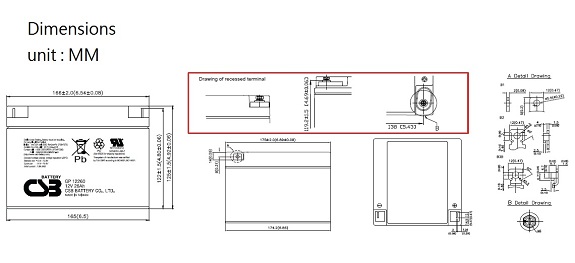

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 106.00 | 69.00 | 52.80 | 32.70 | 19.60 | 14.30 | 11.50 | 8.14 | 5.24 | 3.46 | 2.82 | 1.47 |
| 1.67V | 99.00 | 65.90 | 51.10 | 32.30 | 19.50 | 14.20 | 11.40 | 8.13 | 5.23 | 3.43 | 2.79 | 1.42 |
| 1.70V | 95.70 | 64.60 | 50.40 | 32.20 | 19.40 | 14.10 | 11.30 | 8.12 | 5.22 | 3.42 | 2.78 | 1.41 |
| 1.75V | 89.70 | 62.00 | 49.00 | 31.60 | 19.30 | 14.00 | 11.20 | 8.11 | 5.21 | 3.38 | 2.74 | 1.37 |
| 1.80V | 83.30 | 59.40 | 47.50 | 31.10 | 19.20 | 13.90 | 11.10 | 8.10 | 5.19 | 3.35 | 2.70 | 1.33 |
| 1.85V | 76.70 | 56.50 | 45.80 | 30.50 | 19.10 | 13.80 | 11.00 | 8.09 | 5.17 | 3.31 | 2.66 | 1.29 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 1270.00 | 828.00 | 634.00 | 392.00 | 235.00 | 172.00 | 138.00 | 97.70 | 62.90 | 41.50 | 33.80 | 17.60 |
| 1.67V | 1181.00 | 790.00 | 610.00 | 385.00 | 234.00 | 171.00 | 137.00 | 97.60 | 62.80 | 41.20 | 33.50 | 17.10 |
| 1.70V | 1139.00 | 772.00 | 602.00 | 382.00 | 233.00 | 170.00 | 136.00 | 97.50 | 62.70 | 41.00 | 33.30 | 16.90 |
| 1.75V | 1071.00 | 744.00 | 586.00 | 378.00 | 232.00 | 169.00 | 135.00 | 97.40 | 62.60 | 40.60 | 32.90 | 16.50 |
| 1.80V | 999.00 | 713.00 | 570.00 | 373.00 | 231.00 | 168.00 | 134.00 | 97.30 | 62.30 | 40.20 | 32.40 | 16.00 |
| 1.85V | 920.00 | 678.00 | 550.00 | 367.00 | 230.00 | 167.00 | 133.00 | 97.20 | 62.10 | 39.80 | 32.00 | 15.60 |
下载专区 :GP12260 规格书
