XTV121000
更新：2017-08-02 16:59:54 点击：
XTV121000电池是专为极端温度（20至50℃）。创新阀门规范铅酸（VRLA）技术使待机使用设计寿命12年。
公开价：2300 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 100AH @ 20hr-rate to 1.75V per cell @ 25°C(77°F) |
| 重量 | Approx. 30.2 Kg (66.56 lbs) |
| 最大放电电流 | 800A (5sec) |
| 内阻 | Approx. 4.10 mΩ |
| 温度工作范围 | Discharge:-20°C~50°C (-4°F~122°F) Charge:-20°C~50°C (-4°F~122°F) Storage:-15°C~40°C ( 5°F~104°F) |
| 一般使用温度工作范围 | 25°C±3°C (77°F±5°F) |
| 浮充电压 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 建议充电最大电流 | 30 A |
| 均充电压 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| 端子 | I2 thread lead alloy terminal to accept M6 bolt |
| 电槽组材质 | PP (UL 94-HB) & Flame Retardant (94-V0) available upon request |
|
|

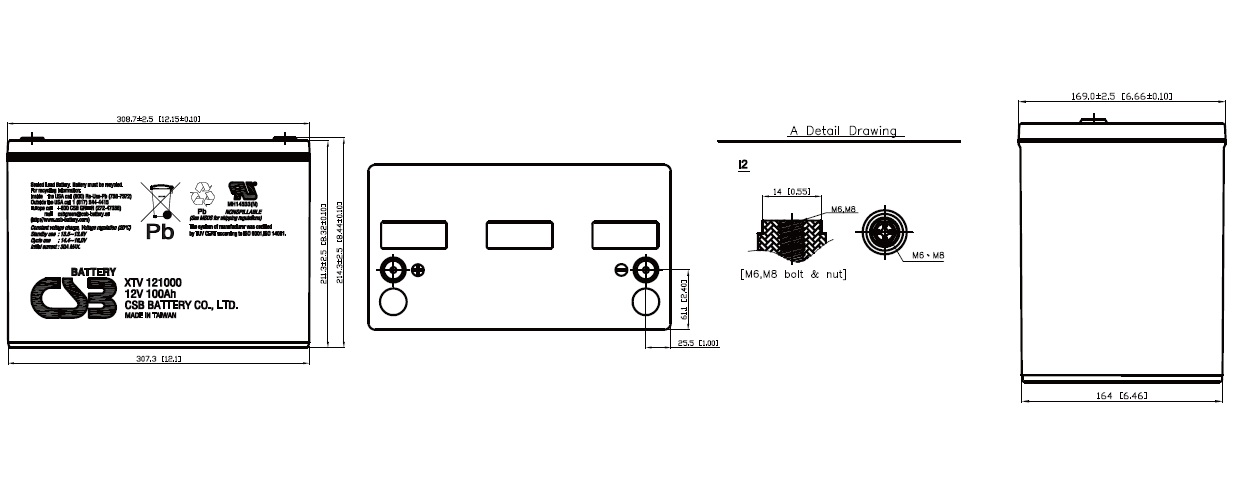

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 371.00 | 259.00 | 194.00 | 115.90 | 67.80 | 48.90 | 38.70 | 27.70 | 17.70 | 11.60 | 9.54 | 5.05 |
| 1.67V | 328.00 | 242.00 | 188.00 | 114.30 | 67.20 | 48.70 | 38.40 | 27.40 | 17.50 | 11.50 | 9.47 | 5.02 |
| 1.70V | 309.00 | 231.00 | 184.00 | 113.30 | 66.70 | 48.30 | 38.00 | 27.30 | 17.40 | 11.40 | 9.45 | 5.01 |
| 1.75V | 282.00 | 212.00 | 173.00 | 109.90 | 65.50 | 47.70 | 37.60 | 26.90 | 17.30 | 11.30 | 9.38 | 5.00 |
| 1.80V | 243.00 | 193.00 | 157.00 | 104.30 | 63.00 | 46.30 | 36.50 | 26.10 | 16.80 | 11.20 | 9.16 | 4.84 |
| 1.85V | 191.00 | 170.00 | 138.00 | 96.90 | 59.10 | 43.80 | 34.60 | 25.20 | 16.10 | 10.70 | 8.82 | 4.63 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 3591.00 | 2638.00 | 2095.00 | 1307.00 | 778.00 | 569.00 | 450.00 | 323.00 | 211.00 | 138.00 | 114.00 | 59.90 |
| 1.67V | 3382.00 | 2513.00 | 2029.00 | 1286.00 | 775.00 | 567.00 | 447.00 | 321.00 | 210.00 | 137.00 | 113.00 | 59.60 |
| 1.70V | 3268.00 | 2445.00 | 1987.00 | 1274.00 | 771.00 | 564.00 | 445.00 | 319.00 | 209.00 | 136.00 | 112.00 | 59.30 |
| 1.75V | 2932.00 | 2308.00 | 1880.00 | 1245.00 | 761.00 | 557.00 | 440.00 | 316.00 | 207.00 | 135.00 | 111.00 | 59.00 |
| 1.80V | 2572.00 | 2149.00 | 1727.00 | 1192.00 | 735.00 | 545.00 | 429.00 | 308.00 | 203.00 | 133.00 | 110.00 | 58.10 |
| 1.85V | 2255.00 | 1872.00 | 1546.00 | 1125.00 | 695.00 | 519.00 | 412.00 | 297.00 | 194.00 | 129.00 | 105.00 | 55.90 |
下载专区 :XTV121000 规格书
