EVH12390
更新：2017-07-18 12:18:24 点击：
EVH 12390 is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life.
公开价：799 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
|
|
规格书
|
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 39.0Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F) |
| 重量(kg) | Approx. 11.50kg. (25.35 lbs.) |
| 最大放电电流5秒(A) | 400A (5 sec) |
| 内阻(mΩ) | Approx. 8.9mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25°C ± 3°C (77°F ± 5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 建议充电最大电流 | 11.7A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | B5-L terminal to accept M6 nut & bolt |
| 电槽组材质 | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
|
|
|

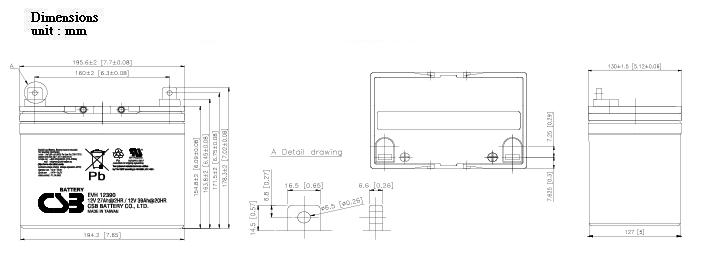

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 4HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 39.60 | 23.30 | 17.80 | 14.40 | 10.40 | 8.25 | 6.93 | 4.68 | 3.89 | 2.13 |
| 1.67V | 38.50 | 22.90 | 17.50 | 14.20 | 10.30 | 8.19 | 6.87 | 4.60 | 3.81 | 2.06 |
| 1.70V | 37.40 | 22.40 | 17.20 | 14.00 | 10.20 | 8.13 | 6.79 | 4.53 | 3.73 | 2.01 |
| 1.75V | 36.40 | 22.00 | 16.80 | 13.70 | 10.10 | 8.04 | 6.71 | 4.46 | 3.67 | 1.96 |
| 1.80V | 35.40 | 21.60 | 16.60 | 13.50 | 9.93 | 7.94 | 6.62 | 4.40 | 3.60 | 1.91 |
| 1.85V | 34.30 | 21.10 | 16.20 | 13.30 | 9.78 | 7.80 | 6.52 | 4.33 | 3.54 | 1.87 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 4HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 475.00 | 280.00 | 213.00 | 172.00 | 124.00 | 99.00 | 83.20 | 56.20 | 46.60 | 25.50 |
| 1.67V | 463.00 | 276.00 | 210.00 | 170.00 | 123.00 | 98.10 | 82.40 | 55.30 | 45.60 | 24.80 |
| 1.70V | 451.00 | 271.00 | 207.00 | 168.00 | 122.00 | 97.20 | 81.50 | 54.40 | 44.80 | 24.10 |
| 1.75V | 438.00 | 265.00 | 204.00 | 166.00 | 120.00 | 96.20 | 80.50 | 53.60 | 44.00 | 23.50 |
| 1.80V | 425.00 | 260.00 | 201.00 | 163.00 | 119.00 | 95.00 | 79.40 | 52.80 | 43.30 | 22.90 |
| 1.85V | 412.00 | 253.00 | 197.00 | 160.00 | 117.00 | 93.70 | 78.20 | 52.00 | 42.60 | 22.40 |
下载专区 : EVH12390 规格书
