XTV121100
更新：2017-08-02 17:01:59 点击：
XTV121100电池是专为极端温度（20至50℃）。创新阀门规范铅酸（VRLA）技术使待机使用设计寿命12年。
公开价：2530 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 110AH @ 20hr-rate to 1.75V per cell @ 25°C(77°F) |
| 重量 | Approx. 34.2 Kg (75.38 lbs) |
| 最大放电电流 | 800A (5sec) |
| 内阻 | Approx. 3.60 mΩ |
| 温度工作范围 | Discharge:-20°C~50°C (-4°F~122°F) Charge:-20°C~50°C (-4°F~122°F) Storage:-15°C~40°C ( 5°F~104°F) |
| 一般使用温度工作范围 | 25°C±3°C (77°F±5°F) |
| 浮充电压 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 建议充电最大电流 | 33 A |
| 均充电压 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| 端子 | I2 thread lead alloy terminal to accept M6 bolt |
| 电槽组材质 | PP (UL 94-HB) & Flame Retardant (94-V0) available upon request |
|
|

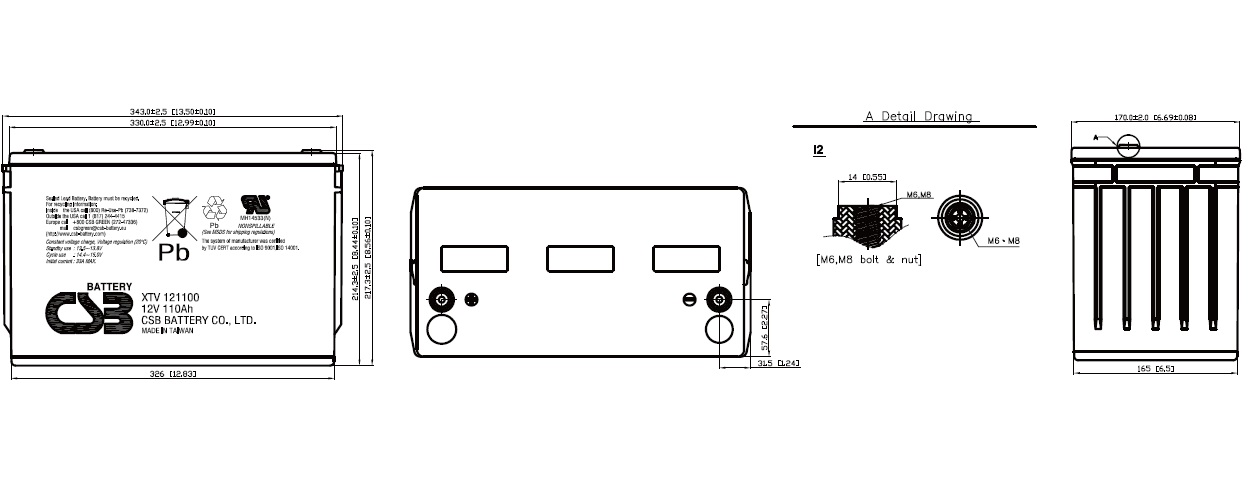

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 425.00 | 307.00 | 235.00 | 138.20 | 78.60 | 55.80 | 43.70 | 31.20 | 20.00 | 13.10 | 10.73 | 5.53 |
| 1.67V | 382.00 | 289.00 | 227.00 | 135.30 | 77.50 | 55.40 | 43.50 | 30.80 | 19.90 | 13.00 | 10.60 | 5.52 |
| 1.70V | 364.00 | 276.00 | 222.00 | 134.40 | 77.20 | 55.00 | 43.00 | 30.70 | 19.70 | 12.90 | 10.50 | 5.51 |
| 1.75V | 339.00 | 254.00 | 207.00 | 129.90 | 75.60 | 54.00 | 42.50 | 30.30 | 19.50 | 12.80 | 10.40 | 5.50 |
| 1.80V | 289.00 | 232.00 | 188.00 | 123.20 | 72.30 | 52.10 | 41.20 | 29.40 | 18.90 | 12.60 | 10.24 | 5.33 |
| 1.85V | 231.00 | 200.00 | 163.00 | 114.50 | 67.10 | 48.80 | 38.90 | 28.20 | 18.20 | 12.00 | 9.86 | 5.15 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 4173.00 | 3108.00 | 2509.00 | 1543.00 | 890.00 | 640.00 | 505.00 | 363.00 | 236.00 | 155.00 | 126.00 | 66.70 |
| 1.67V | 3921.00 | 2975.00 | 2418.00 | 1515.00 | 884.00 | 635.00 | 502.00 | 361.00 | 235.00 | 154.00 | 125.00 | 66.60 |
| 1.70V | 3745.00 | 2914.00 | 2368.00 | 1508.00 | 880.00 | 633.00 | 501.00 | 359.00 | 234.00 | 153.00 | 124.00 | 66.10 |
| 1.75V | 3384.00 | 2783.00 | 2251.00 | 1464.00 | 862.00 | 622.00 | 493.00 | 356.00 | 231.00 | 152.00 | 123.00 | 65.70 |
| 1.80V | 2988.00 | 2573.00 | 2053.00 | 1411.00 | 827.00 | 600.00 | 479.00 | 346.00 | 228.00 | 149.00 | 122.00 | 64.90 |
| 1.85V | 2719.00 | 2220.00 | 1834.00 | 1323.00 | 773.00 | 567.00 | 455.00 | 334.00 | 218.00 | 145.00 | 118.00 | 62.30 |
下载专区 :XTV121100 规格书
