XHRL12410W
更新：2017-08-02 16:39:41 点击：
XHRL12410W电池是专为高倍率放电的应用。待机使用寿命可达10年。
公开价：1620 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 410.0W@ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F) |
| 重量(kg) | Approx. 32.6 kg (71.85 lbs) |
| 最大放电电流5秒(A) | 800A (5sec) |
| 内阻(mΩ) | Approx. 2.9 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃ (5°F~122°F) Charge：-15℃~40℃ (5°F~104°F) Storage：-15℃~40℃ (5°F~104°F) |
| 一般使用温度工作范围 | 25°C±3°C (77°F±5°F) |
| 浮充电压 | 13.5 to 13.8 VDC/Unit Average at 25°C(77°F) |
| 建议充电最大电流 | 41 A |
| 均充电压 | 14.4 to 15.0 VDC/Unit Average at 25°C(77°F) |
| 自放电 | Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| 端子 | I2 thread lead alloy terminal to accept M6 bolt |
| 电槽组材质 | Flame Retardant Polypropylene (UL 94-V0) |
|
|

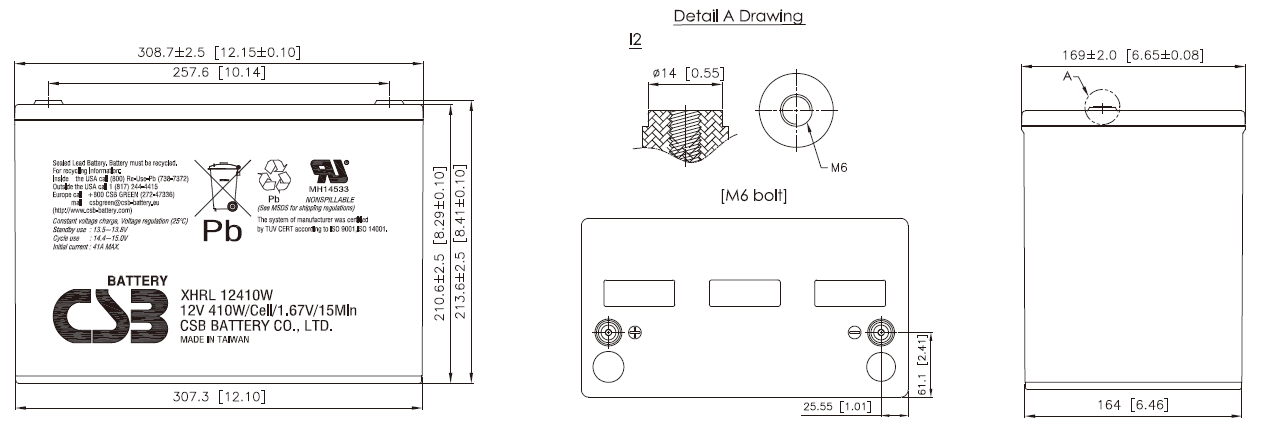

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 615.00 | 512.00 | 431.00 | 369.00 | 319.00 | 238.00 | 189.00 | 136.00 | 76.40 | 54.60 |
| 1.67V | 552.00 | 463.00 | 399.00 | 341.00 | 302.00 | 229.00 | 183.00 | 133.00 | 75.60 | 54.20 |
| 1.70V | 522.00 | 439.00 | 378.00 | 328.00 | 291.00 | 223.00 | 179.00 | 132.00 | 75.00 | 54.00 |
| 1.75V | 469.00 | 402.00 | 343.00 | 304.00 | 269.00 | 212.00 | 171.00 | 128.00 | 73.60 | 53.30 |
| 1.80V | 402.00 | 349.00 | 309.00 | 272.00 | 242.00 | 195.00 | 160.00 | 121.00 | 70.80 | 51.90 |
| 1.85V | 311.00 | 300.00 | 263.00 | 233.00 | 213.00 | 171.00 | 142.00 | 110.00 | 65.90 | 48.80 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 6081.00 | 5070.00 | 4341.00 | 3771.00 | 3322.00 | 2571.00 | 2112.00 | 1600.00 | 890.40 | 631.90 |
| 1.67V | 5600.00 | 4794.00 | 4058.00 | 3599.00 | 3166.00 | 2504.00 | 2068.00 | 1580.00 | 882.80 | 628.00 |
| 1.70V | 5337.00 | 4580.00 | 3922.00 | 3480.00 | 3078.00 | 2462.00 | 2040.00 | 1565.00 | 877.70 | 625.70 |
| 1.75V | 4887.00 | 4179.00 | 3684.00 | 3242.00 | 2901.00 | 2362.00 | 1972.00 | 1529.00 | 864.70 | 619.60 |
| 1.80V | 4307.00 | 3763.00 | 3348.00 | 2958.00 | 2687.00 | 2207.00 | 1863.00 | 1468.00 | 838.70 | 604.60 |
| 1.85V | 3660.00 | 3284.00 | 2887.00 | 2635.00 | 2454.00 | 2002.00 | 1711.00 | 1372.00 | 789.80 | 571.80 |
下载专区 :XHRL12410W 规格书
