XHRL12360W
更新：2017-08-02 16:37:00 点击：
XHRL12360W电池是专为高倍率放电的应用。待机使用寿命可达10年。
公开价：1350 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 360.0W @ 15minute-rate to 1.67V per cell @ 25°C (77°F) |
| 重量(kg) | Approx. 28.3 Kg (62.37 lbs) |
| 最大放电电流5秒(A) | 800A (5sec) |
| 内阻(mΩ) | Approx. 3.10 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃ (5°F~122°F) Charge：-15℃~40℃ (5°F~104°F) Storage：-15℃~40℃ (5°F~104°F) |
| 一般使用温度工作范围 | 25°C±3°C (77°F±5°F) |
| 浮充电压 | 13.5 to 13.8 VDC/Unit Average at 25°C(77°F) |
| 建议充电最大电流 | 36A |
| 均充电压 | 14.4 to 15.0 VDC/Unit Average at 25°C(77°F) |
| 自放电 | Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| 端子 | I2 thread lead alloy terminal to accept M6 bolt |
| 电槽组材质 | Flame Retardant Polypropylene (UL 94-V0) |
|
|

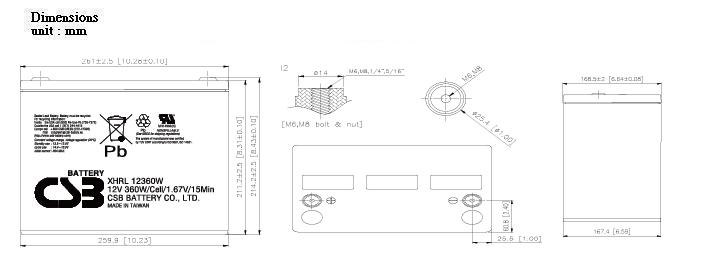

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 577.00 | 468.00 | 387.00 | 331.00 | 287.00 | 207.00 | 164.00 | 117.00 | 65.80 | 46.90 |
| 1.67V | 524.00 | 421.00 | 360.00 | 308.00 | 272.00 | 200.00 | 159.00 | 116.00 | 65.20 | 46.60 |
| 1.70V | 490.00 | 400.00 | 342.00 | 296.00 | 262.00 | 195.00 | 156.00 | 115.00 | 64.80 | 46.40 |
| 1.75V | 438.00 | 364.00 | 310.00 | 275.00 | 240.00 | 185.00 | 150.00 | 111.00 | 63.70 | 45.90 |
| 1.80V | 366.00 | 316.00 | 278.00 | 243.00 | 215.00 | 170.00 | 140.00 | 106.00 | 61.50 | 44.70 |
| 1.85V | 294.00 | 272.00 | 235.00 | 208.00 | 189.00 | 150.00 | 126.00 | 97.80 | 57.40 | 42.00 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 5772.00 | 4683.00 | 3949.00 | 3419.00 | 3001.00 | 2295.00 | 1836.00 | 1340.00 | 766.00 | 552.00 |
| 1.67V | 5399.00 | 4381.00 | 3701.00 | 3270.00 | 2864.00 | 2236.00 | 1799.00 | 1324.00 | 760.00 | 550.00 |
| 1.70V | 5100.00 | 4198.00 | 3577.00 | 3170.00 | 2783.00 | 2198.00 | 1774.00 | 1312.00 | 757.00 | 548.00 |
| 1.75V | 4586.00 | 3834.00 | 3355.00 | 2943.00 | 2617.00 | 2097.00 | 1708.00 | 1280.00 | 746.00 | 544.00 |
| 1.80V | 4067.00 | 3454.00 | 3047.00 | 2671.00 | 2411.00 | 1936.00 | 1601.00 | 1225.00 | 723.00 | 531.00 |
| 1.85V | 3329.00 | 3038.00 | 2625.00 | 2366.00 | 2184.00 | 1726.00 | 1453.00 | 1141.00 | 680.00 | 503.00 |
下载专区 :XHRL12360W 规格书
