UPS122406
更新：2017-08-02 16:22:47 点击：
UPS122406使用UPS最新超薄板技术提供最佳的高率（5分钟）的性能，进行了5年的备用服务。
公开价：320 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 40W @ 5min-rate to 1.60V per cell @25°C (77°F) |
| 重量 | Approx . 1.46 Kg (3.22 lbs) |
| 最大放电电流 | 100/130A (5sec) |
| 内阻 | Approx . 33.5 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃ (5°F~122°F) Charge：-15℃~40℃ (5°F~104°F) Storage：-15℃~40℃ (5°F~104°F) |
| 一般使用温度工作范围 | 25°C ±3°C (77°F ± 5°F) |
| 浮充电压 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 议充电最大电流值 | 2.0A |
| 均充电压 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉) |
| 端子 | F1/F2 terminal -Faston Tab 187/250 |
| 电槽组材质 | ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request |
|
|

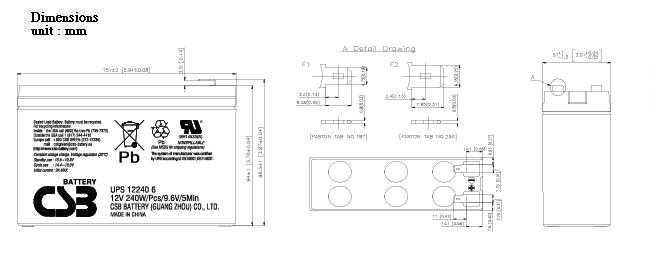

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 3MIN | 4MIN | 5MIN | 6MIN | 7MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 42.40 | 32.60 | 27.20 | 23.60 | 20.60 | 18.30 | 16.10 | 13.50 | 9.89 | 7.93 | 5.80 | 3.35 | 2.41 |
| 1.67V | 37.40 | 30.30 | 26.00 | 22.70 | 20.00 | 17.70 | 15.90 | 13.30 | 9.77 | 7.88 | 5.77 | 3.34 | 2.40 |
| 1.70V | 35.20 | 29.10 | 25.20 | 22.00 | 19.70 | 17.40 | 15.60 | 13.20 | 9.67 | 7.86 | 5.75 | 3.31 | 2.38 |
| 1.75V | 31.40 | 26.70 | 23.50 | 20.80 | 18.50 | 16.60 | 14.90 | 12.80 | 9.57 | 7.73 | 5.69 | 3.28 | 2.36 |
| 1.80V | 27.70 | 24.40 | 21.30 | 19.10 | 16.90 | 15.20 | 14.00 | 12.10 | 9.22 | 7.48 | 5.55 | 3.22 | 2.32 |
| 1.85V | 24.00 | 21.00 | 19.00 | 16.70 | 15.00 | 13.70 | 12.60 | 11.00 | 8.53 | 6.96 | 5.28 | 3.08 | 2.23 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 3MIN | 4MIN | 5MIN | 6MIN | 7MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 383.00 | 321.00 | 275.00 | 240.00 | 213.00 | 192.00 | 177.00 | 151.00 | 112.00 | 90.10 | 66.10 | 38.50 | 28.10 |
| 1.67V | 362.00 | 306.00 | 264.00 | 233.00 | 208.00 | 189.00 | 174.00 | 149.00 | 111.00 | 89.70 | 65.70 | 38.40 | 28.00 |
| 1.70V | 350.00 | 297.00 | 258.00 | 228.00 | 205.00 | 187.00 | 171.00 | 148.00 | 110.00 | 89.40 | 65.60 | 38.30 | 27.90 |
| 1.75V | 324.00 | 277.00 | 243.00 | 217.00 | 196.00 | 180.00 | 166.00 | 144.00 | 109.00 | 88.10 | 65.10 | 38.10 | 27.80 |
| 1.80V | 296.00 | 254.00 | 226.00 | 201.00 | 184.00 | 170.00 | 156.00 | 136.00 | 105.00 | 85.50 | 63.70 | 37.50 | 27.40 |
| 1.85V | 258.00 | 228.00 | 203.00 | 184.00 | 170.00 | 154.00 | 143.00 | 127.00 | 97.80 | 79.70 | 61.30 | 36.10 | 26.40 |
下载专区 :UPS122406 规格书
