详情
规格书 |
局数 | 6 V |
电压值 | 12 V |
安培数 | 410W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
重量(kg) | Approx. 33.0kg (72.73 lbs) |
最大放电电流5秒(A) | 800A(5sec) |
内阻(mΩ) | Approx. 3.0 mΩ |
温度工作范围 | Discharge:-15℃~50℃(5°F~122°F) Charge:-15℃~40℃(5°F~104°F) Storage:-15℃~40℃(5°F~104°F) |
一般使用温度工作范围 | 25℃±3℃ (77°F±5°F) |
浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
建议充电最大电流 | 39A |
均充使用充电条件 | 14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
端子 | I2-Thread lead alloy recessed terminal to accept M6 bolt |
电槽组材质 | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |

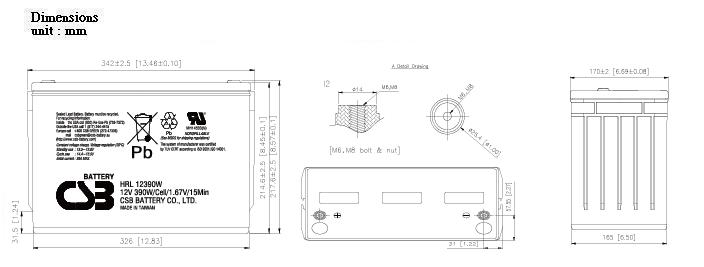

尺寸 |
定电流放电特性表 单位: 安培(25℃,77℉) |
终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
1.60V | 589.00 | 499.00 | 423.00 | 362.00 | 315.00 | 239.00 | 192.00 | 140.00 | 79.60 | 57.10 |
1.67V | 532.00 | 456.00 | 386.00 | 334.00 | 298.00 | 230.00 | 186.00 | 138.00 | 78.90 | 56.80 |
1.70V | 504.00 | 428.00 | 367.00 | 320.00 | 288.00 | 224.00 | 183.00 | 137.00 | 78.20 | 56.40 |
1.75V | 463.00 | 384.00 | 330.00 | 296.00 | 266.00 | 212.00 | 174.00 | 132.00 | 76.70 | 55.70 |
1.80V | 382.00 | 330.00 | 296.00 | 266.00 | 239.00 | 197.00 | 163.00 | 125.00 | 73.80 | 54.20 |
1.85V | 296.00 | 285.00 | 253.00 | 228.00 | 210.00 | 175.00 | 147.00 | 114.00 | 68.80 | 51.20 |
定功率放电特性表 单位: 瓦特(25℃,77℉) |
终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
1.60V | 5767.00 | 4830.00 | 4188.00 | 3683.00 | 3299.00 | 2550.00 | 2083.00 | 1566.00 | 913.00 | 666.00 |
1.67V | 5312.00 | 4557.00 | 3919.00 | 3518.00 | 3141.00 | 2483.00 | 2039.00 | 1545.00 | 906.00 | 663.00 |
1.70V | 5049.00 | 4348.00 | 3787.00 | 3434.00 | 3048.00 | 2440.00 | 2010.00 | 1529.00 | 900.00 | 660.00 |
1.75V | 4583.00 | 3970.00 | 3555.00 | 3190.00 | 2861.00 | 2348.00 | 1943.00 | 1488.00 | 885.00 | 653.00 |
1.80V | 4044.00 | 3587.00 | 3253.00 | 2893.00 | 2641.00 | 2215.00 | 1843.00 | 1423.00 | 858.00 | 639.00 |
1.85V | 3486.00 | 3160.00 | 2804.00 | 2576.00 | 2412.00 | 2006.00 | 1690.00 | 1328.00 | 812.00 | 609.00 |
下载专区 :HRL12390W 规格书
