HRL12330W
更新：2017-07-18 14:38:38 点击：
HRL12330W是专为高效放电、寿命长的应用。它具有体积小、重量轻、放电效率高等特点。可循环使用260次以上，循环使用100%次，备用期可达8年。
公开价：2130 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 350W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
| 重量(kg) | Approx. 29.6 kg (65.24 lbs) |
| 最大放电电流5秒(A) | 800A (5sec) |
| 内阻(mΩ) | Approx. 3.5 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25℃±3℃ (77°F±5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
| 建议充电最大电流 | 33A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| 电槽组材质 | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
|
|

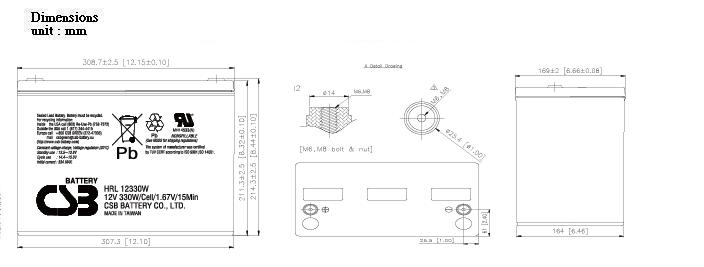

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 530.00 | 444.00 | 373.00 | 317.00 | 271.00 | 202.00 | 162.00 | 119.00 | 68.40 | 49.60 |
| 1.67V | 482.00 | 405.00 | 341.00 | 293.00 | 256.00 | 196.00 | 158.00 | 117.00 | 67.90 | 49.40 |
| 1.70V | 454.00 | 382.00 | 326.00 | 280.00 | 248.00 | 191.00 | 155.00 | 116.00 | 67.50 | 49.30 |
| 1.75V | 405.00 | 340.00 | 293.00 | 257.00 | 230.00 | 181.00 | 149.00 | 112.00 | 66.40 | 48.90 |
| 1.80V | 337.00 | 294.00 | 257.00 | 230.00 | 206.00 | 168.00 | 139.00 | 106.00 | 64.10 | 47.70 |
| 1.85V | 252.00 | 243.00 | 219.00 | 196.00 | 180.00 | 150.00 | 125.00 | 97.10 | 59.90 | 45.10 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 4597.00 | 4083.00 | 3730.00 | 3221.00 | 2870.00 | 2187.00 | 1772.00 | 1318.00 | 784.00 | 578.00 |
| 1.67V | 4397.00 | 3951.00 | 3474.00 | 3065.00 | 2737.00 | 2131.00 | 1738.00 | 1304.00 | 779.00 | 576.00 |
| 1.70V | 4285.00 | 3878.00 | 3345.00 | 2983.00 | 2656.00 | 2093.00 | 1713.00 | 1292.00 | 775.00 | 575.00 |
| 1.75V | 4043.00 | 3550.00 | 3109.00 | 2830.00 | 2485.00 | 2009.00 | 1656.00 | 1260.00 | 764.00 | 571.00 |
| 1.80V | 3660.00 | 3143.00 | 2862.00 | 2515.00 | 2276.00 | 1883.00 | 1564.00 | 1204.00 | 742.00 | 559.00 |
| 1.85V | 2976.00 | 2795.00 | 2432.00 | 2204.00 | 2042.00 | 1676.00 | 1416.00 | 1116.00 | 700.00 | 534.00 |
下载专区 :HRL12330W 规格书
