HRL12200W
更新：2017-07-18 14:34:09 点击：
HRL12200W是专为高效放电、寿命长的应用。它具有体积小、重量轻、放电效率高等特点。可循环使用260次以上，循环使用100%次，备用期可达8年。
公开价：1350 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 215W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
| 重量(kg) | Approx. 17.3kg (38.13 lbs) |
| 最大放电电流5秒(A) | 400A (5sec) |
| 内阻(mΩ) | Approx. 5.5 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25℃±3℃ (77°F±5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
| 建议充电最大电流 | 20A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| 电槽组材质 | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
|
|

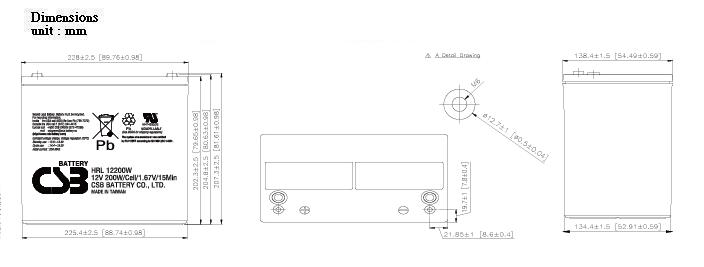

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 5MIN | 7.5MIN | 10MIN | 15MIN | 20MIN | 30MIN | 40MIN | 50MIN | 60MIN | 90MIN |
| 1.60V | 243.00 | 197.00 | 164.00 | 123.00 | 98.90 | 71.90 | 57.70 | 48.50 | 41.80 | 29.90 |
| 1.67V | 218.00 | 184.00 | 157.00 | 118.00 | 97.00 | 71.20 | 56.90 | 48.00 | 41.20 | 29.50 |
| 1.70V | 209.00 | 175.00 | 151.00 | 116.00 | 95.70 | 70.30 | 56.60 | 47.80 | 41.10 | 29.40 |
| 1.75V | 192.00 | 161.00 | 141.00 | 111.00 | 92.00 | 68.20 | 55.20 | 46.90 | 40.30 | 29.10 |
| 1.80V | 165.00 | 145.00 | 126.00 | 102.00 | 85.20 | 64.60 | 53.20 | 45.00 | 38.90 | 28.20 |
| 1.85V | 145.00 | 124.00 | 110.00 | 91.30 | 76.10 | 59.00 | 49.50 | 41.80 | 36.20 | 26.60 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 5MIN | 7.5MIN | 10MIN | 15MIN | 20MIN | 30MIN | 40MIN | 50MIN | 60MIN | 90MIN |
| 1.60V | 2448.00 | 2041.00 | 1745.00 | 1333.00 | 1098.00 | 816.00 | 659.00 | 556.00 | 476.00 | 343.00 |
| 1.67V | 2306.00 | 1931.00 | 1666.00 | 1308.00 | 1083.00 | 809.00 | 656.00 | 554.00 | 475.00 | 342.00 |
| 1.70V | 2207.00 | 1870.00 | 1625.00 | 1282.00 | 1066.00 | 796.00 | 648.00 | 553.00 | 474.00 | 339.00 |
| 1.75V | 2022.00 | 1761.00 | 1523.00 | 1232.00 | 1027.00 | 772.00 | 638.00 | 542.00 | 464.00 | 335.00 |
| 1.80V | 1840.00 | 1621.00 | 1409.00 | 1158.00 | 959.00 | 738.00 | 616.00 | 522.00 | 452.00 | 326.00 |
| 1.85V | 1659.00 | 1418.00 | 1255.00 | 1035.00 | 873.00 | 687.00 | 576.00 | 490.00 | 423.00 | 310.00 |
下载专区 :HRL12200W 规格书
