HRL12150W
更新：2017-07-18 14:32:20 点击：
HRL12150W是专为高效放电、寿命长的应用。它具有体积小、重量轻、放电效率高等特点。可循环使用260次以上，循环使用100%次，备用期可达8年。
公开价：1100 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 155W @15 minute-rate to 1.67V per cell @25℃ (77°F) |
| 重量(kg) | Approx. 11.75 kg (25.90 lbs) |
| 最大放电电流5秒(A) | 225A (5sec) |
| 内阻(mΩ) | Approx. 7.3 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25℃±3℃ (77°F±5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
| 建议充电最大电流 | 15 A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| 电槽组材质 | ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request. |
|
|

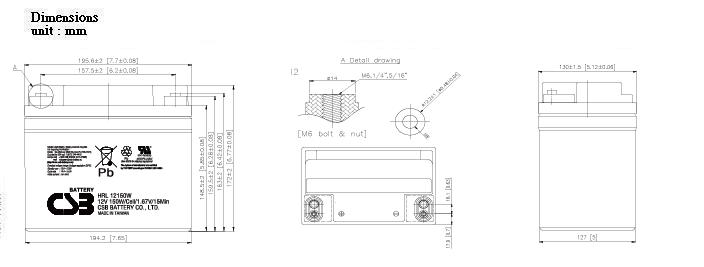

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 5MIN | 7.5MIN | 10MIN | 15MIN | 20MIN | 30MIN | 40MIN | 50MIN | 60MIN | 90MIN |
| 1.60V | 169.00 | 138.00 | 116.00 | 86.70 | 69.60 | 50.40 | 40.00 | 33.50 | 28.90 | 20.80 |
| 1.67V | 152.00 | 127.00 | 107.00 | 82.20 | 66.30 | 48.40 | 38.70 | 32.50 | 28.60 | 20.50 |
| 1.70V | 144.00 | 122.00 | 103.00 | 80.00 | 64.70 | 47.50 | 38.00 | 32.10 | 28.40 | 20.40 |
| 1.75V | 132.00 | 112.00 | 96.80 | 76.00 | 62.00 | 45.70 | 36.80 | 30.90 | 27.80 | 20.00 |
| 1.80V | 119.00 | 104.00 | 90.00 | 71.10 | 58.40 | 43.80 | 35.10 | 29.80 | 26.80 | 19.50 |
| 1.85V | 107.00 | 94.10 | 82.80 | 67.00 | 55.10 | 41.70 | 33.60 | 28.60 | 25.00 | 18.60 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 5MIN | 7.5MIN | 10MIN | 15MIN | 20MIN | 30MIN | 40MIN | 50MIN | 60MIN | 90MIN |
| 1.60V | 1794.00 | 1479.00 | 1263.00 | 968.00 | 788.00 | 577.00 | 463.00 | 387.00 | 335.00 | 244.00 |
| 1.67V | 1624.00 | 1370.00 | 1182.00 | 935.00 | 753.00 | 559.00 | 451.00 | 386.00 | 334.00 | 239.00 |
| 1.70V | 1549.00 | 1322.00 | 1143.00 | 916.00 | 737.00 | 548.00 | 442.00 | 382.00 | 332.00 | 236.00 |
| 1.75V | 1422.00 | 1234.00 | 1075.00 | 877.00 | 704.00 | 530.00 | 428.00 | 374.00 | 325.00 | 231.00 |
| 1.80V | 1302.00 | 1143.00 | 1006.00 | 825.00 | 675.00 | 507.00 | 410.00 | 361.00 | 314.00 | 226.00 |
| 1.85V | 1188.00 | 1057.00 | 943.00 | 773.00 | 639.00 | 486.00 | 396.00 | 337.00 | 296.00 | 222.00 |
下载专区 :HRL12150W 规格书
