HR1218W
更新：2017-07-18 12:46:56 点击：
HR1218W是专为高效放电中的应用。其特点是体积小、重量轻、放电效率高。它可用于260个周期的100%放电在循环服务，或三至五年的备用服务。
公开价：180 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 18W @ 15min-rate to 1.67V per cell @25 (77 ) |
| 重量(kg) | Approx. 1.53 kg (3.37lbs) |
| 最大放电电流5秒(A) | 130A (5sec) |
| 内阻(mΩ) | Approx. 28.5mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25℃±3℃ (77°F±5°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25℃ (77°F) |
| 建议充电最大电流 | 1.8A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/Unit Average at 25℃(77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | F2-Faston Tab250 |
| 电槽组材质 | ABS(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
|
|

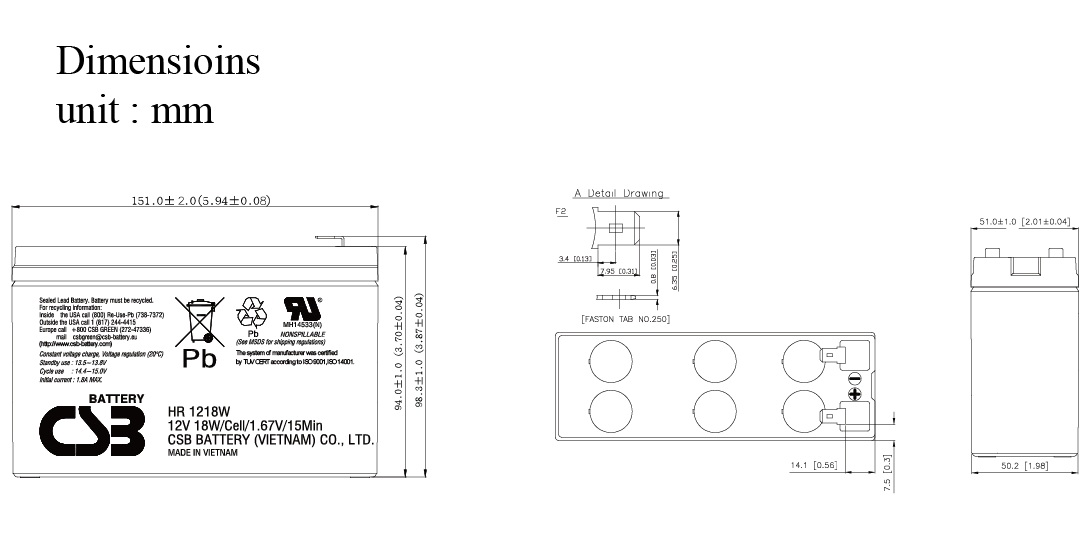

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 33.20 | 26.50 | 20.20 | 16.30 | 13.60 | 9.86 | 7.77 | 5.61 | 3.17 | 2.28 |
| 1.67V | 30.90 | 24.80 | 19.60 | 15.90 | 13.30 | 9.74 | 7.74 | 5.54 | 3.12 | 2.24 |
| 1.70V | 30.00 | 24.10 | 19.20 | 15.50 | 13.00 | 9.59 | 7.67 | 5.47 | 3.10 | 2.22 |
| 1.75V | 29.20 | 22.80 | 18.10 | 15.00 | 12.70 | 9.46 | 7.53 | 5.42 | 3.07 | 2.20 |
| 1.80V | 27.90 | 20.60 | 16.60 | 14.10 | 12.00 | 9.11 | 7.32 | 5.32 | 3.04 | 2.17 |
| 1.85V | 24.10 | 18.30 | 14.90 | 12.60 | 10.90 | 8.43 | 6.82 | 5.04 | 2.92 | 2.09 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 2MIN | 4MIN | 6MIN | 8MIN | 10MIN | 15MIN | 20MIN | 30MIN | 60MIN | 90MIN |
| 1.60V | 339.00 | 271.00 | 213.00 | 178.00 | 150.00 | 108.00 | 88.00 | 64.50 | 37.00 | 26.70 |
| 1.67V | 332.00 | 260.00 | 206.00 | 174.00 | 147.00 | 107.00 | 87.00 | 64.20 | 36.80 | 26.50 |
| 1.70V | 329.00 | 252.00 | 202.00 | 172.00 | 146.00 | 106.00 | 85.80 | 63.50 | 36.40 | 26.20 |
| 1.75V | 325.00 | 241.00 | 194.00 | 165.00 | 141.00 | 105.00 | 85.00 | 62.90 | 36.00 | 26.00 |
| 1.80V | 308.00 | 227.00 | 183.00 | 155.00 | 133.00 | 102.00 | 82.50 | 61.80 | 35.60 | 25.70 |
| 1.85V | 273.00 | 207.00 | 170.00 | 143.00 | 124.00 | 94.60 | 77.90 | 59.20 | 34.40 | 24.80 |
下载专区 :HR1218W 规格书
