GPL12750
更新：2017-07-18 12:34:43 点击：
GPL12750是一种通用电池，在25°C（77°F）的正常浮充下使用寿命可达8年。
正如所有的CSB电池都可充电，高效、防泄漏、免维护。
公开价：3375 元
此价格为公开报价，优惠价请联系我们索取。
此价格为公开报价，优惠价请联系我们索取。
详情
| 规格书 |
| 局数 | 6 V |
| 电压值 | 12 V |
| 安培数 | 80Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F) |
| 重量(kg) | Approx. 25.6kg. (56.42 lbs.) |
| 最大放电电流5秒(A) | 800 A (5 sec.) |
| 内阻(mΩ) | Approx. 4.0 mΩ |
| 温度工作范围 | Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F) |
| 一般使用温度工作范围 | 25°C ± 3°C (77°F ± 3°F) |
| 浮充使用充电条件 | 13.5 to 13.8 VDC/unit Average at 25°C (77°F) |
| 建议充电最大电流 | 22.5 A |
| 均充使用充电条件 | 14.4 to 15.0 VDC/unit Average at 25°C (77°F) |
| 自放电 | It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃ |
| 端子 | I2-Thread lead alloy recessed terminal to accept M6 bolt |
| 电槽组材质 | Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request. |
|
|

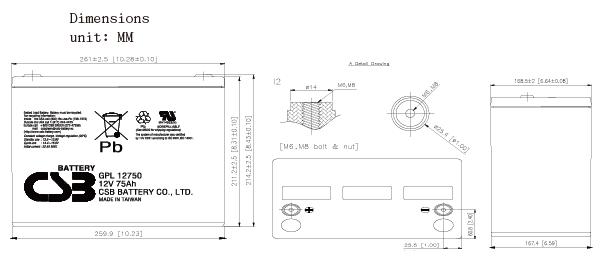

尺寸
|
|
|
| 定电流放电特性表 单位: 安培(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 298.00 | 198.00 | 149.00 | 87.50 | 53.50 | 38.80 | 30.90 | 21.90 | 14.50 | 9.57 | 7.85 | 4.15 |
| 1.67V | 274.00 | 191.00 | 146.00 | 86.70 | 53.20 | 38.60 | 30.70 | 21.70 | 14.40 | 9.46 | 7.78 | 4.13 |
| 1.70V | 265.00 | 187.00 | 144.00 | 86.10 | 52.40 | 38.10 | 30.50 | 21.50 | 14.30 | 9.40 | 7.76 | 4.11 |
| 1.75V | 234.00 | 170.00 | 139.00 | 84.40 | 51.40 | 37.40 | 29.90 | 21.40 | 14.10 | 9.38 | 7.63 | 4.04 |
| 1.80V | 210.00 | 158.00 | 131.00 | 81.90 | 50.20 | 36.80 | 29.50 | 21.00 | 13.80 | 9.17 | 7.55 | 3.97 |
| 1.85V | 183.00 | 145.00 | 118.00 | 77.00 | 47.50 | 34.90 | 28.10 | 20.30 | 13.50 | 8.88 | 7.26 | 3.82 |
| 定功率放电特性表 单位: 瓦特(25℃,77℉) |
| 终止电压/时间 | 5MIN | 10MIN | 15MIN | 30MIN | 60MIN | 90MIN | 2HR | 3HR | 5HR | 8HR | 10HR | 20HR |
| 1.60V | 3013.00 | 2127.00 | 1654.00 | 1003.00 | 614.00 | 456.00 | 370.00 | 261.00 | 173.00 | 116.00 | 93.50 | 49.70 |
| 1.67V | 2818.00 | 2060.00 | 1635.00 | 996.00 | 612.00 | 452.00 | 365.00 | 260.00 | 172.00 | 115.00 | 92.90 | 49.40 |
| 1.70V | 2729.00 | 2022.00 | 1609.00 | 994.00 | 610.00 | 450.00 | 363.00 | 259.00 | 171.00 | 114.00 | 92.70 | 49.30 |
| 1.75V | 2553.00 | 1927.00 | 1558.00 | 976.00 | 603.00 | 447.00 | 361.00 | 257.00 | 170.00 | 113.00 | 92.30 | 49.00 |
| 1.80V | 2371.00 | 1815.00 | 1478.00 | 949.00 | 592.00 | 440.00 | 356.00 | 254.00 | 168.00 | 111.00 | 91.00 | 48.70 |
| 1.85V | 2075.00 | 1667.00 | 1348.00 | 904.00 | 572.00 | 422.00 | 341.00 | 245.00 | 162.00 | 107.00 | 87.50 | 47.10 |
下载专区 :GPL12750 规格书
